Upright Room Sanitizers

UVC Handy-360x417-1
UVC Handy-360x417-1
UVC Handy-360x417-1

Space-500 & Space-1000: Mobile UVC Robots

These devices are equipped for the security of its users with multiple motion sensors that will shut-off the device in the presence of any motion. The devices all have preset off control that allows the user to set the timing and leave the room without any exposure.

Space-500 model can sanitize any room of 20 feet by 20 feet in minutes.

Space-1000 model has 65" long vertical lamps to even expose bottom sides of tables, chairs. The device is equipped with patent-pending floor UVC sanitizer that even covers the floor beneath the pedestal.

Intended Use

  • 220nm to 280nm nominal 254 nm UVC, 360° room sanitizer between patients and customers.

  • Effective room air pathogen reduction device.

  • Surface disinfection of equipment, walls, tables, furniture, fixtures, and high-contact items.

  • Floor disinfection against viruses, bacteria, mold.

  • Natural virus destruction without any resistance build-up.

  • Rolls room to room on 4 casters.

Space-500 Technical Specifications

  • Construction: Solid stainless steel

  • Dimensions: 18" x 24" x 79.5" high

  • Operation: Timer with delay, so operator can safely leave the room

  • Frequency of use: As often as desired

  • Light intensity: 155 microWatt/sqcm @ 8 feet distance

  • Influenza virus kill rate: 43 seconds @ 8 feet distance, 99.9% effective

  • Enclosure: Quartz secondary protection of lamps and lamp protection cage

  • Light source: Hard quartz, non-ozone type

  • Number of lamps: 4 lamps SHO

  • Power input: 120 VAC 60 Hz, 230 VAC 50 Hz

  • Amperage: 4.5 Amps @ 120 VAC, 2.5 Amps @ 230 VAC

  • Power inlet: EMC filtration (hospital grade) at the power inlet

  • Power cord: Standard, 15 Amp @120 VAC IEC grounded with fuses

  • Lamp Life: 16,000 hours

  • Safety devices: Entry fuses, on/off switch, delay timer

Space-1000 Technical Specifications

  • Special features: Floor irradiation under equipment base via UVC lamp

  • Construction: Solid stainless steel and aluminum

  • Dimensions: 21" x 19" x 79.5" high

  • Operation: Timer with delay, so operator can safely leave the room

  • Frequency of use: As often as desired

  • Light intensity: 185 microWatt/sqcm @ 8 feet distance

  • Reflector: Super polished UV reflectors

  • Light source: Hard quartz, non-ozone type

  • Number of lamps: 5 lamps, Including under unit floor UVC (patent pending)

  • Power input: 120 VAC 60 Hz, 220 VAC 50 Hz

  • Amperage: 6.1 Amps @ 120 VAC (model SHO), 3.5 Amps @ 230 VAC 50 Hz

  • Power inlet: EMC filtration (hospital grade) at the power inlet

  • Power cord: Standard, 15 Amp @120 VAC IEC grounded with fuses

  • Lamp Life: 16,000 hours

  • Safety devices: Entry fuses, on/off switch, delay timer, 360° motion sensor shut off

Caution

Do not look directly at the lamps without wearing eye protection. Do not expose skin to the light; it may cause severe burns in a few seconds.

Regulatory approvals

EPA Registered, Conforms to CSA/NRTL/ANSI, UL1431 standards manufactured with ISO 13485-2016 quality controls.

Note: This is not a medical device.

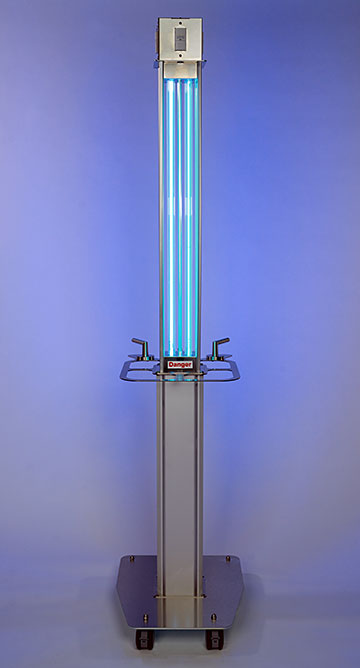

Space-500
space500 360

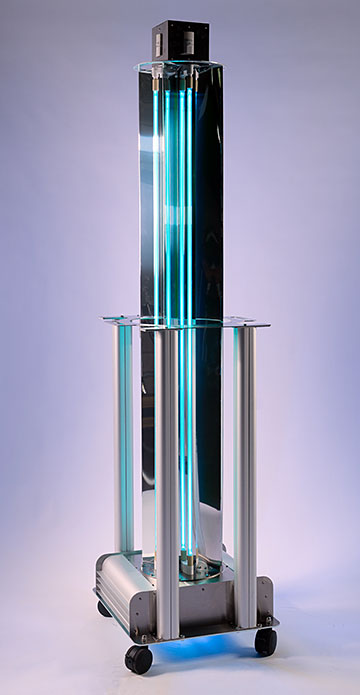

Space-1000
space1000 360
